Item No:58720
Electric R/C Car Series No.720
1/10 SCALE R/C 4WD HIGH PERFORMANCE RACING CAR TT-02 TYPE-SRX CHASSIS KIT

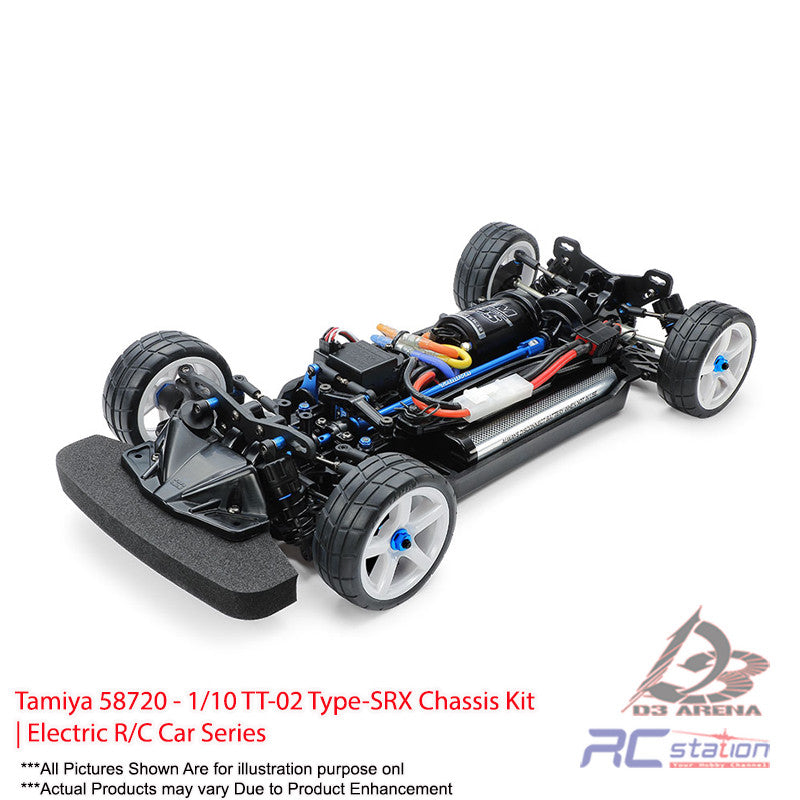

Length: 361mm. Image shows assembled kit.
*Motor, tires, R/C equipment, battery pack and charger are sold separately.
Racy TT-02
This kit sees the versatile beginner chassis TT-02 paired with a host of Hop-Up Options and other parts to raise its racing ability and tuneability. The efficient drivetrain employs a front direct coupling and double cardan drive shafts, with a rear oil gear differential. TRF420 design suspension arms give great feedback during your drive, and the rear suspension can be fine-tuned via its adjustable mount. Its 27T pinion and 68T spur gears give a gear ratio of 6.55:1.
Specifications
ā Length: 361mm, width: 183mm
ā Wheelbase: 258mm
ā Bathtub type frame
ā Longitudinal motor, shaft driven 4WD
ā Front direct coupling, rear oil gear differential
ā 3-piece steering tie-rod
ā 4-wheel double wishbone suspension
ā CVA oil dampers
ā Gear ratio = 6.55:1 (with kit standard 27T pinion and 68T spur gears)
ā Type 540 motor and electronic speed controller (ESC) are sold separately.
Separately Required Items
ā Body
ā Brushless motor
ā Tires
ā 2-channel R/C system w/ESC
ā R6/AA/UM3 batteries for transmitter
ā Battery pack & charger

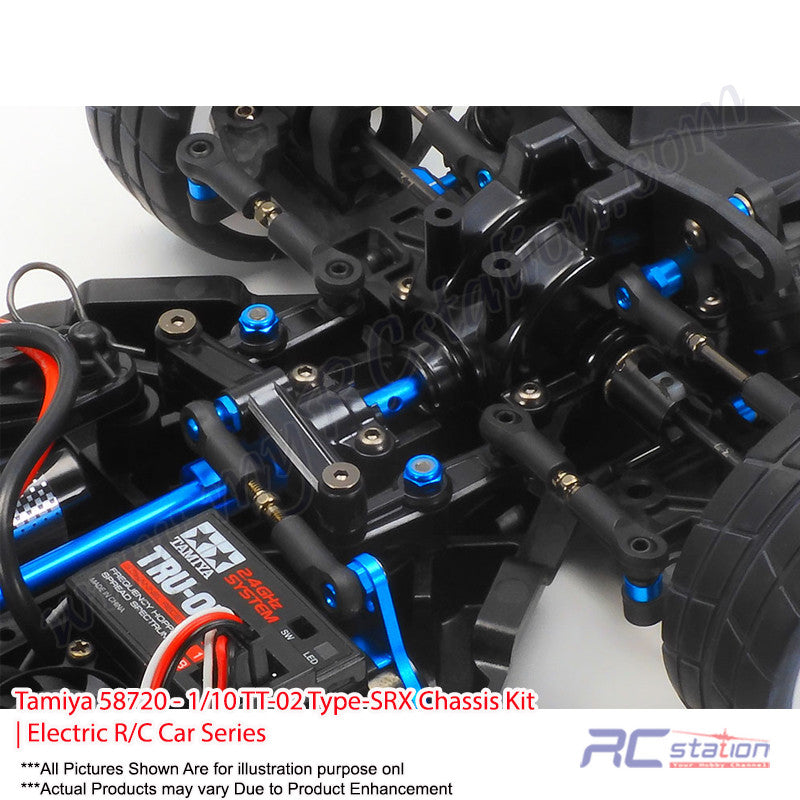

ā The kit comes with a hi-torque servo saver as standard, to help protect the servo and steering linkage from damage.
ā TRF420 design suspension arms and uprights are employed, with drouble cardan drive shafts.
ā Dampers have a choice of three each of upper and lower attachment points: fine-tune to your heart's content!
ā The front direct coupling gives stable handling, and here is paired with durable, dedicated joint cups.
ā An aluminum propeller shaft is joined by propeller joints designed specially for use with the included plastic anti-wear caps.
ā The rear oil gear differential features lightweight yet durable aluminium joint cups.
ā Left: The rear suspension setup can be altered using plastic bushings in the mount, fine-tuning toe and skid angles.
ā Right: Rear 39mm drive shafts have been given a low-friction, highly durable hard coating.
