Item No:58675All Electric R/C Car Series No.675
1/10 SCALE R/C 4WD OFF-ROAD CAR MERCEDES-BENZ G 500 (CC-02 CHASSIS)

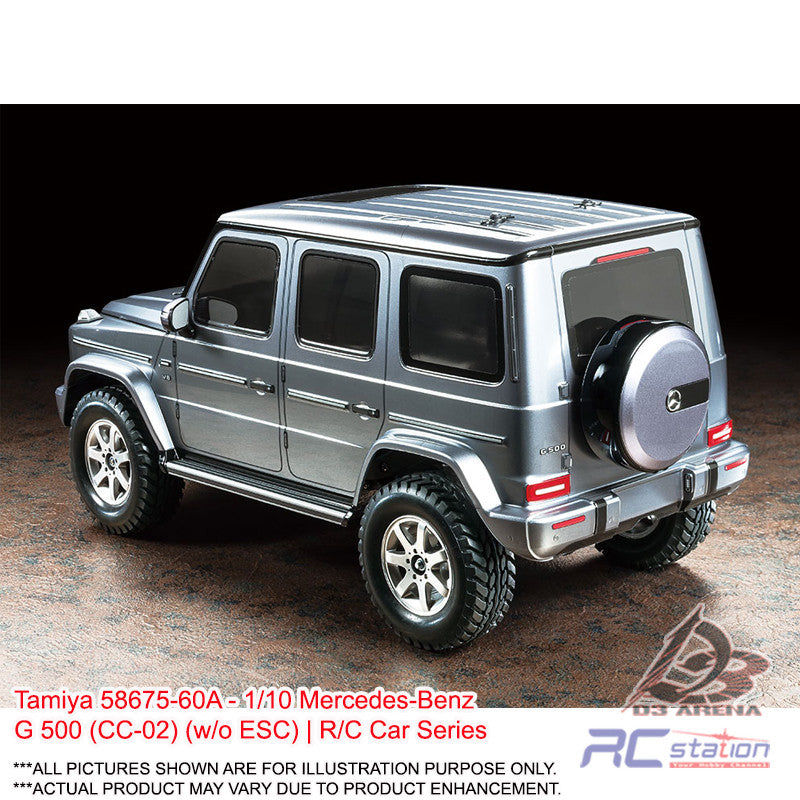

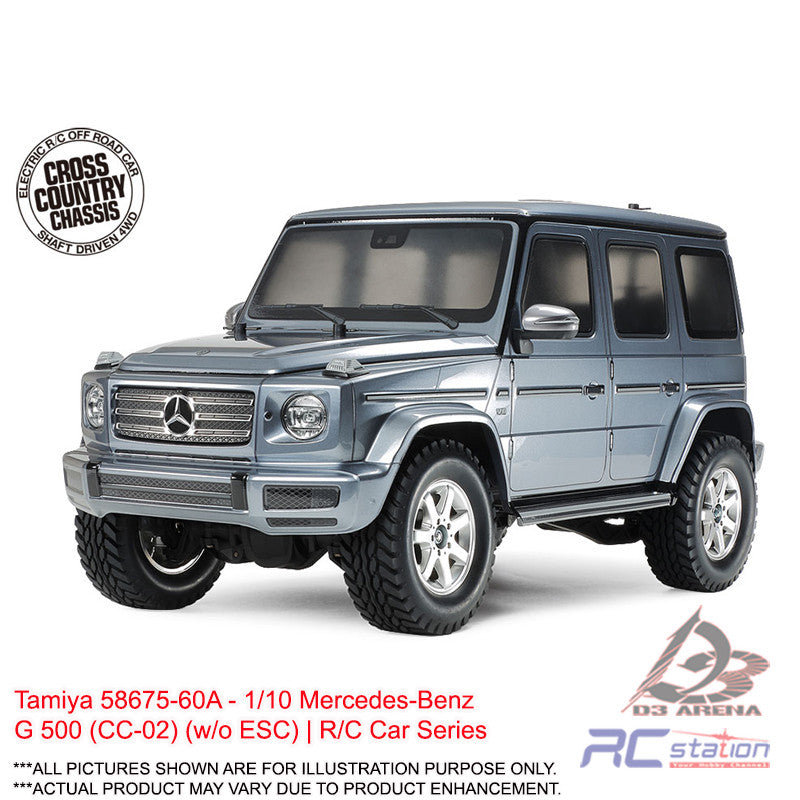

Length: 455 mm. Image shows painted and assembled kit.
Modern Icon
The Mercedes-Benz G Class' heavy duty chassis and distinctive body design have long made it a favorite with consumers, and in 2018 it was endowed with new models including the G 500, powered by a 4-liter V8 twin turbo engine. This R/C model assembly kit recreates the G 500. Length: 455mm, width: 196mm, height: 207mm. The boxy form is recreated accurately in polycarbonate, with separate molded parts for front grille, side mirrors and spare tire cover. The CC-02 provides a great base for the model, at home on a range of off-road surfaces and even rocky terrain.

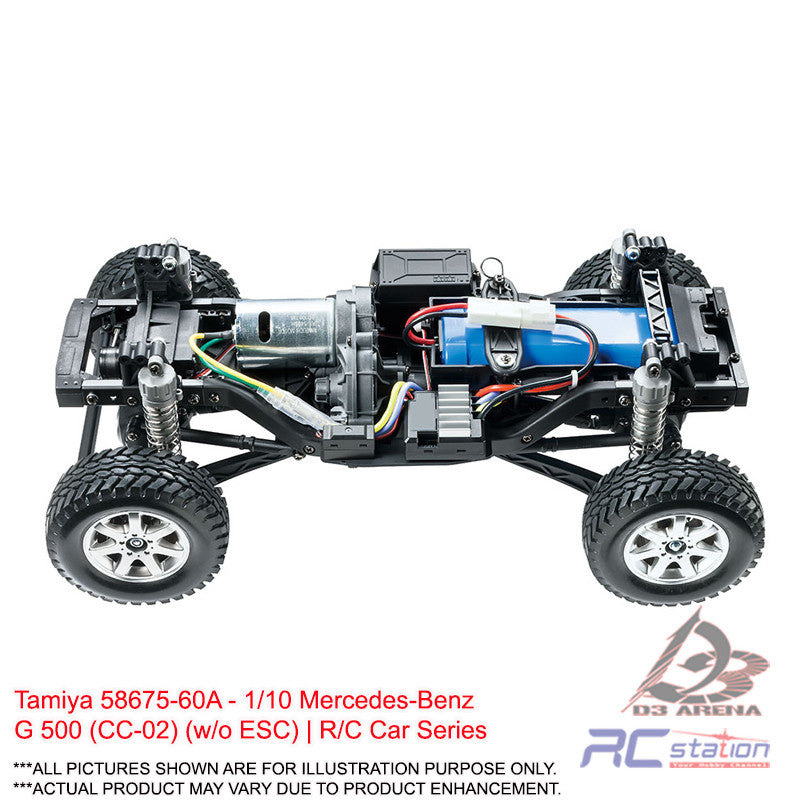

CC-02 Chassis - Off Road, Evolved
Designed for a wide range of off-road scenes including rocky terrain, the CC-02 chassis' ladder frame is inspired by full-size vehicles and is the base for its superior durability. A 4WD setup employs the motor longitudinally behind the front axle with separated gearbox and transfer case, and propeller shafts transmitting power to the differential gears front and rear. Four-link rigid suspension is employed front and rear, with CVA oil dampers for all-encompassing control, even on tricky rock sections. This model comes with matte plated seven-spoke wheels and grippy block pattern tires.
Specifications
ā Length: 455mm, Width: 196mm, Height: 207mm
ā Wheelbase: 267mmć
ā Tread: 160mm (Front), 163mm (Rear)
ā Tire Width/Diameter: 33/90mm (Front & Rear)
ā Ladder Frame
ā Longitudinal Motor, Shaft-Driven 4WD
ā 3-Bevel Differential Gears
ā 4-Link Rigid Suspension (Front & Rear)
ā Gear Ratio = 17.33:1 (using kit-standard 16T pinion)
ā Type 540 Motor
ā Electronic Speed Controller (ESC) is sold separately.
Separately Required Items
ā 2-channel R/C system w/ESC
ā R6/AA/UM3 batteries for transmitter
ā Battery pack & charger
